Installing Core Banking

HINT
This page contains the installation steps for Core Banking v3.0.
If you need to install the Core Banking v3.0.1, follow the instructions on this page.
If you need to install the Core Banking v3.0.2, follow the instructions on this page.

Follow the steps described below to perform an automatic installation of the Core Banking. This is a process of running a script, the install_SysPack.bat file, on your environment. The script automatically imports the content of the Core Banking v3.0 into your Innovation Studio.

IMPORTANT!
You must run the script on the machine where Innovation Studio is installed.
Make sure you have access rights to Studio's database.

Dependencies

In order to install Core Banking v3.0, first you need to install the following:

  • Innovation Studio minimum version v21.2.1

  • Standard SysPack minimum version v21.1.6002

  • Single Customer View (Retail & SME) v3.1

  • FTOS.Foundation - Project

  • Banking Product Factory (Project or Standard Pack) v3.0.

NOTE
A JobServer must be running on your platform in order to process any asynchronous, batch, end of day and start of day jobs.
IMPORTANT!
After performing the installation steps, make sure you complete the post-installation setup within the web.config files.

Pre-Installation Checklist

The SysPack has unique constraints on some of the standard entities like: FTOS_DFP_FlowSettings , FTOS_DFP_ProcessorSettings, FTOS_VersionSettings, FTOS_VersionSettingsItem, FTOS_EntityStatusSettings, FTOS_MKT_AudienceSegments, FTOS_MKT_Audience, and for all Banking Product entities.

If you have already moved data using the Configuration Data Deployment Package menu, then you probably have already configured some unique constraints.

Before running the script, make sure you:

  1. Disable the constraints that you have created on your environment, allowing the system to create the new ones after the Core Banking v3.0 is imported.

  2. Use the new Configuration Data Definitions imported with the Core Banking v3.0 file when you export the data.

HINT

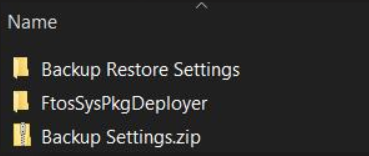

If there are no settings to be backed up at the Banking Product level, but there are settings to be saved at the Core Banking level, then you must import the Backup Restore Settings v3.0 project. Decide whether you should import it or not!

This project comes with the FTOS_Config_bak entity. The purpose of its script is to save the old values of the system parameters (EbsMetadata.SystemParameter and Ebs.FTOS_CB_SystemParameter).

The project has a matching script at the end of the Core Banking package, which restores the old values saved by this first script.

Installation Steps

  1. Unzip your CoreBanking_3.0.zip archive file.

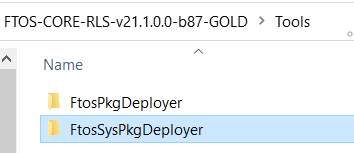

  2. Locate the FtosSysPkgDeployer folder in the FintechOS installation kit (the path is <unzipped_install_archive>\Tools\FtosSysPkgDeployer). You need it to install the SysPack.

  3. Select and copy the FtosSysPkgDeployer folder.

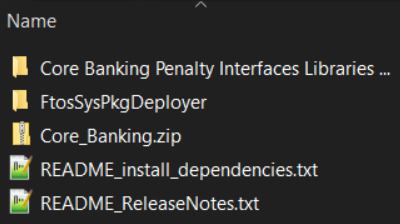

  4. Navigate to the location where you have unzipped the CoreBanking_3.0.zip (let’s call this location <pckg_deployer_dir>), then paste the FtosSysPackDeployer folder there, within each and every zip file that comes with the package.

    IMPORTANT!

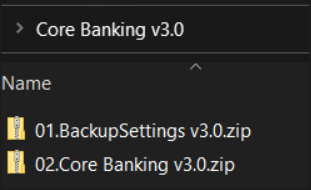

    Each zip file within the CoreBanking_v3.0.zip must be extracted and installed separately, in the given order!

  5. Edit the install_Syspack.bat file. Replace the parameters described in the install_SysPack.bat Parameters Explanation section with your own values. Save and close the file.

  6. Right-click install_SysPack.bat » Run as administrator.

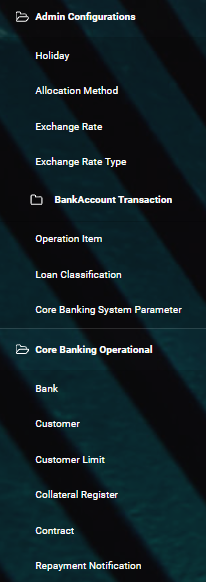

The script starts running in your Windows console. Wait for it to finish. If your parameter values were correct, the FintechOS Portal has two new menus, visible after a refresh, the Admin Configurations and the Core Banking Operational menus:

The install_SysPack.bat file allows you to import the data model:

Copy

install_SysPack.bat syntax for Data Model import

FtosSysPkgDeployer.exe -i -s "<StudioLink>" -u <AdminStudioUser> -p <user_password> -z <DataBaseServer> -v <DB_user> -k <DB_user_password> -d "<TheNameOfTheDataBase>" -r "<syspack_path>\*.zip"



NOTE
The syntax presented here is for information purposes only. Please run the actual install_SysPack.bat file.

  • <StudioLink> - The web URL of the Innovation Studio installation, for example http://localhost/ftos_studio.

  • <AdminStudioUser> - The username of the Innovation Studio user under which this import is executed. The user has to exist in Innovation Studio prior to this operation.

  • <user_password> - The password for the Innovation Studio user.

  • <DataBaseServer> - The name of the database server where the FintechOS installation database was created.

  • <DB_user> - The username of the SQL Server user with administration rights on the FintechOS installation database.

  • <DB_user_password> - The password for the above mentioned SQL user.

  • <TheNameOfTheDataBase> - The name of the database where the CoreBanking_3.0 is deployed.

  • <syspack_path> - The physical path to the unzipped CoreBanking_3.0 previously downloaded.

HINT
For more information about the script, please run FtosSysPackageDeployer.exe without any arguments to see the built-in help.
IMPORTANT!
If you're using SQL Server Integrated Authentication, make sure that the Windows user used for running the script has access to the FTOS database, with read/ write rights. Run the command without the SQL username/ password parameters.
If you're using SQL Server Build In Authentication, make sure that the SQL Server user has read/ write access to the FTOS database. Run the command with the SQL username/ password parameters.

Post-Installation Setup within the web.config Files

After performing the installation steps, make sure you complete the following changes to the application keys within the web.config files which come with the Core Banking package:

The ViewControlPanel application key setting has to be configured in the FintechOS Portal app’s web.config file, in the Innovation Studio app’s web.config file, and the Job Service app’s ServiceSettings.config file. This application key should be set as below:

Copy

app key setting in web.config

<add key="ViewControlPanel" value="0" />

This setting determines if an environment is a production environment (0) or not (1). From a Core Banking perspective, a way to change the date of the system was needed. This helps with projecting what happens with a contract six months from now or what happens at the maturity of the contract. For development or test environments, you can change this value to 1, so that you can change the system date. If the setting is 0, this cannot be set up, and everything happens considering the actual date of the system.

NOTE
If this key is not set up in the web.config file, it are treated as 0.

The CoreBankingInstall application key setting has to be configured in the FintechOS Portal app’s web.config file and in the Innovation Studio app’s web.config file.

This application key should be set as below:

Copy

app key setting in web.config

<add key="CoreBankingInstall" value="0" />

This setting performs a context switch between EbsMetadata.SystemParameter (0) and ebs.FTOS_CB_SystemParameter (1). An entity was created to group multiple setups performed for the platform's System Parameter by module, and where you can check the correctness of the values that are being set up by value type (bool, number, text, option set).

NOTE
If this key is not set up in the web.config files, it is treated as 0.

The PortalProfile application key setting has to be configured in the FintechOS Portal app’s web.config file. This application key should be set as below:

Copy

app key setting in web.config

<add key="core-setting-portal-profile" value="Core Banking"/>

You need to import the CB_ADDON.zip file containing the portal profile definition for Core Banking in order for the Portal to display menus related to Core Banking and Operational Ledger.
