Advanced Entity Find

Advanced Find is a powerful DB segmentation tool which allows you to filter and customize the entity grid displayed in the Data Model Explorer.

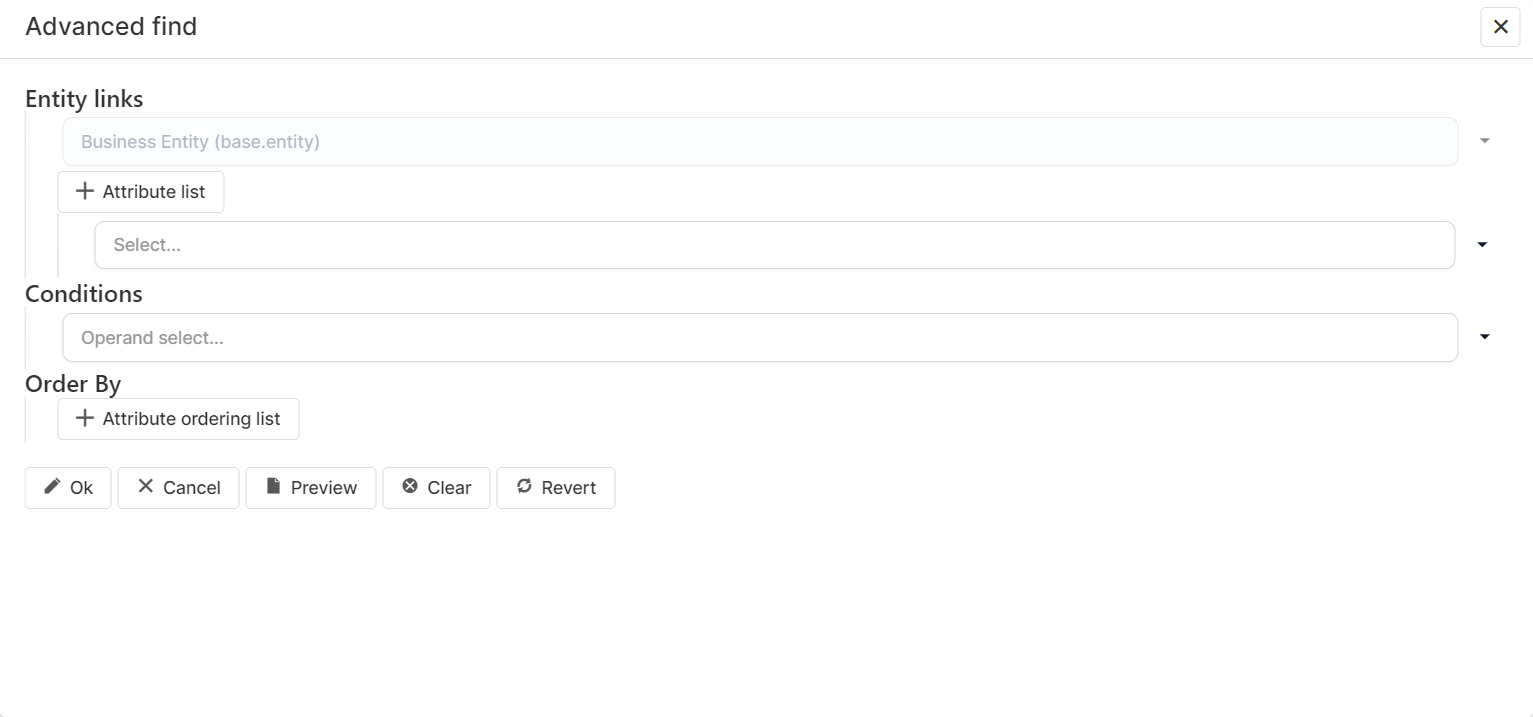

To access Advanced Find, in the Data Model Explorer, click Advanced find (). The Advanced find page will be displayed similarly to the figure below. The page allows you to choose the criteria and conditions for displaying your entities.

1 Select the attributes you wish to display

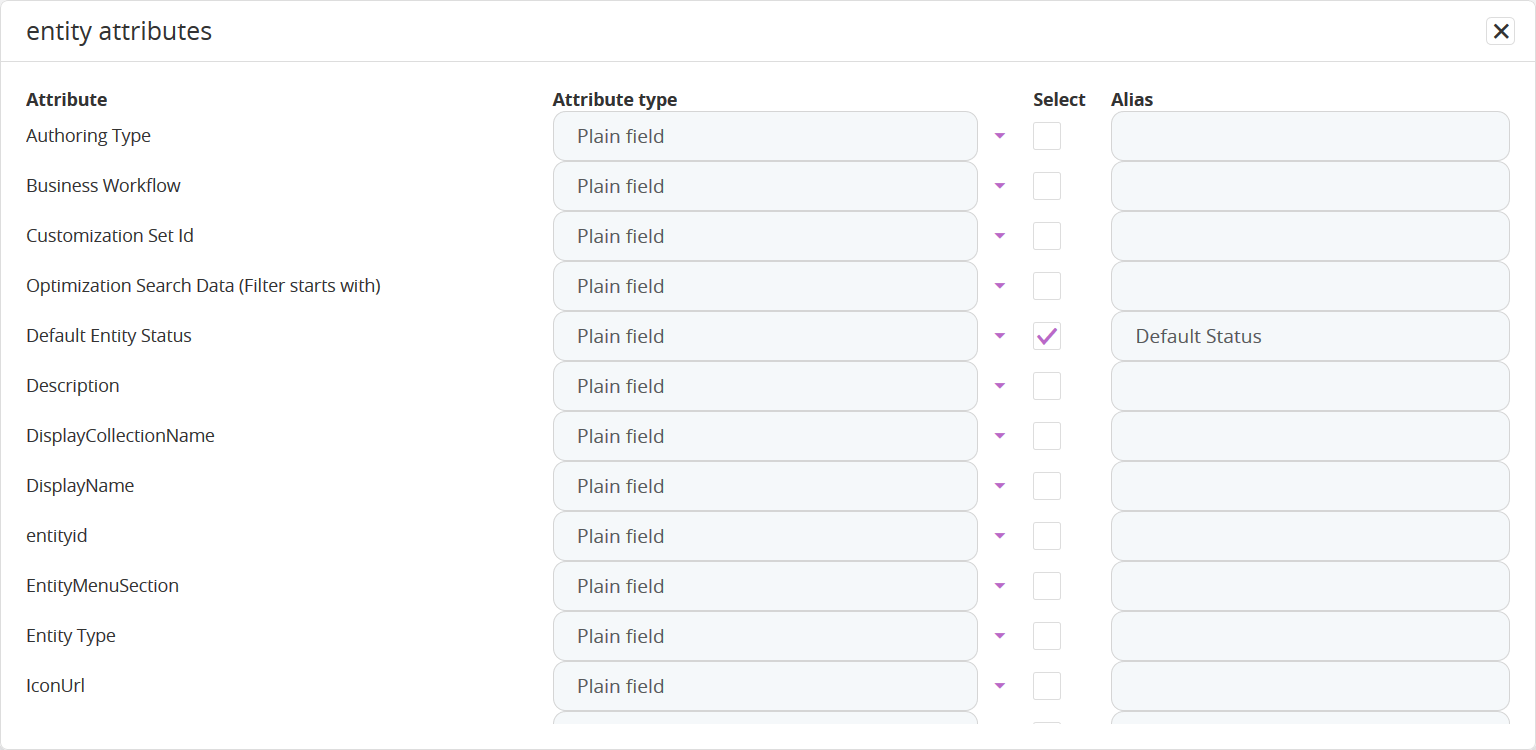

Click Attribute list to open the Attributes List page. This page lists the attributes that all entities have in common.

Select the attributes you want to include in the fetch by clicking the corresponding checkbox in the Select column.

For all selected attributes, in the Alias column, type a unique alias name.

Scroll-down at the bottom of the attributes list and click OK.

2 Apply filtering conditions

From the Conditions section you can select conditions which must be met in order to include a record into the data fetched from the database.

You can apply multiple conditions which need to be met separately or in combination by selecting either AND or OR as logical operator.

To set up the fetch entity data conditions, follow these steps:

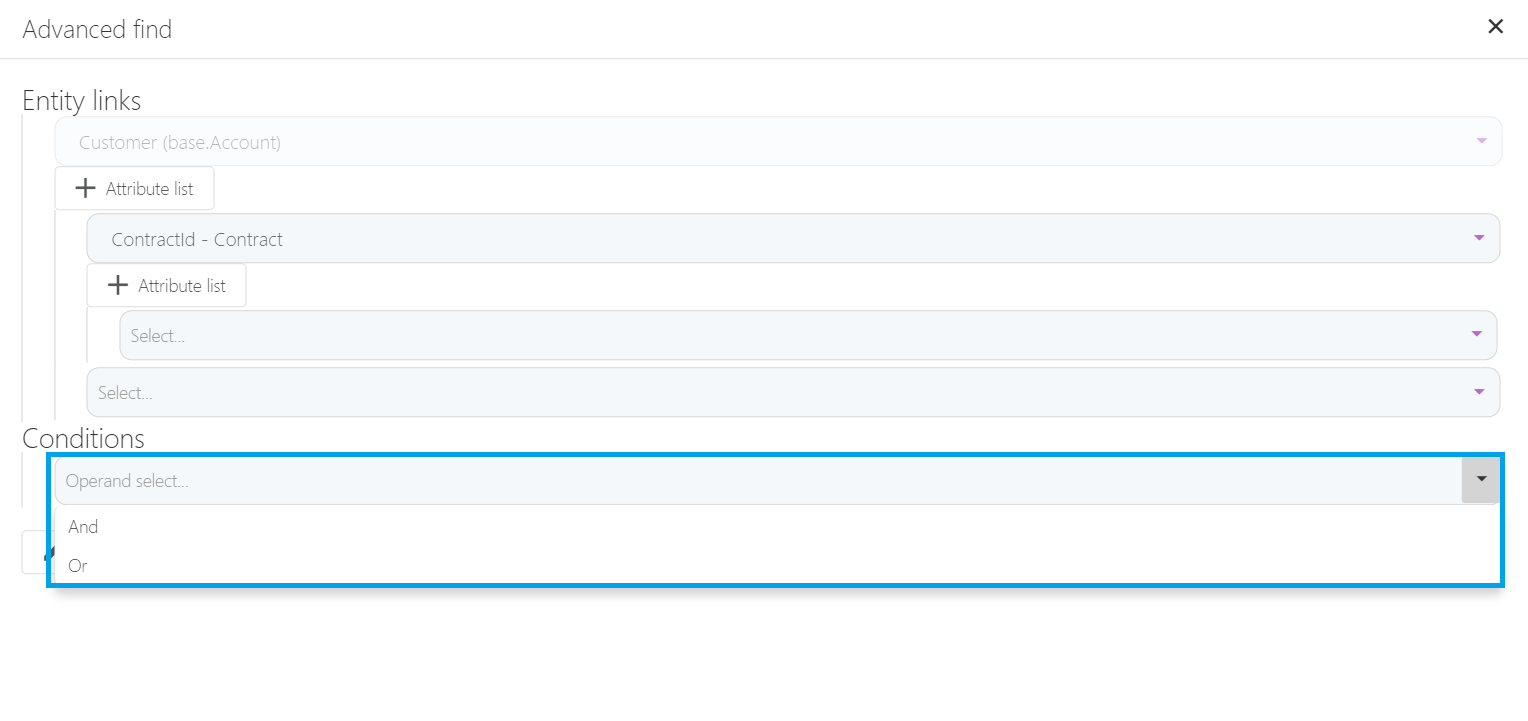

1. From the drop-down field displayed in the Conditions section, select the logical operator:



   AND – to apply multiple conditions which all need to be met.
   OR – to apply multiple conditions when at least one condition needs to be met.
   You can apply multiple conditions by using as many logical operators as you need. Once you select one, another logical operator field will be displayed beneath the first one, and so on.
2. Select the entity on which the condition is to be applied.
   NOTE
   In Advanced Find, you can only select the generic base entity.
   After selecting an entity, the Attribute select field will be displayed below the selected entity.
3. Click the Attribute select field - it will list only the attributes that all entities have in common.
4. Select an attribute of the entity previously selected. Below the selected attribute, the Select operand field will be displayed. The table below describes the operands you can choose from.

   Operand	Description
   Contains	Records will be included in the data fetched from the database if the value of the selected attribute contains the value given in the field displayed below the selected operand field.
   NotContains	Records will be included in the data fetched from the database if the value of the selected attribute does not contain the value given in the field displayed below the selected operand field.
   Equals	Records will be included in the data fetched from the database if the value of the selected attribute equals the value given in the field displayed below the selected operand field.
   NotEquals	Records will be included in the data fetched from the database if the value of the selected attribute is different from the value given in the field displayed below the selected operand field.
   Greater Than	Records will be included in the data fetched from the database if the value of the selected attribute is greater than the value given in the field displayed below the selected operand field.
   Greater Than or Equal	Records will be included in the data fetched from the database if the value of the selected attribute is greater than or equal to the value given in the field displayed below the selected operand field.
   Lower Than	Records will be included in the data fetched from the database if the value of the selected attribute is lower than the value given in the field displayed below the selected operand field.
   Lower Than Equal	Records will be included in the data fetched from the database if the value of the selected attribute is lower than or equal to the value given in the field displayed below the selected operand field.
   IsNotNull	Records will be included in the data fetched from the database if the value of the selected attribute does not contain a null value.
   IsNull	Records will be included in the data fetched from the database if the value of the selected attribute has a null value.
   Last X Days	Records from the last 'x' days will be included in the data fetched from database. Where x is the number of days specified in the field displayed below the operand.
   Last X Months	Records from the last 'x' months will be included in the data fetched from database. Where x is the number of months specified in the field displayed below the operand.
   Last X Years	Records from the last 'x' years will be included in the data fetched from database. Where x is the number of years specified in the field displayed below the operand.
   Last X Weeks	Records from the last 'x' weeks will be included in the data fetched from database. Where x is the number of weeks specified in the field displayed below the operand.
   Next X Days	Records which have the creation date greater than today but less than x days from today. Where x is the number of days specified in the field displayed below the operand.
   Next X Months	Records which have the creation date greater than today but less than x months from today. Where x is the number of months specified in the field displayed below the operand.
   Next X Years	Records which have the creation date greater than today but less than x years from today. Where x is the number of years specified in the field displayed below the operand.

5. Select an operand from the list.
6. If needed, in the text field below the operand field, enter the match value for the selected operand.
7. Repeat for any additional filtering criteria.

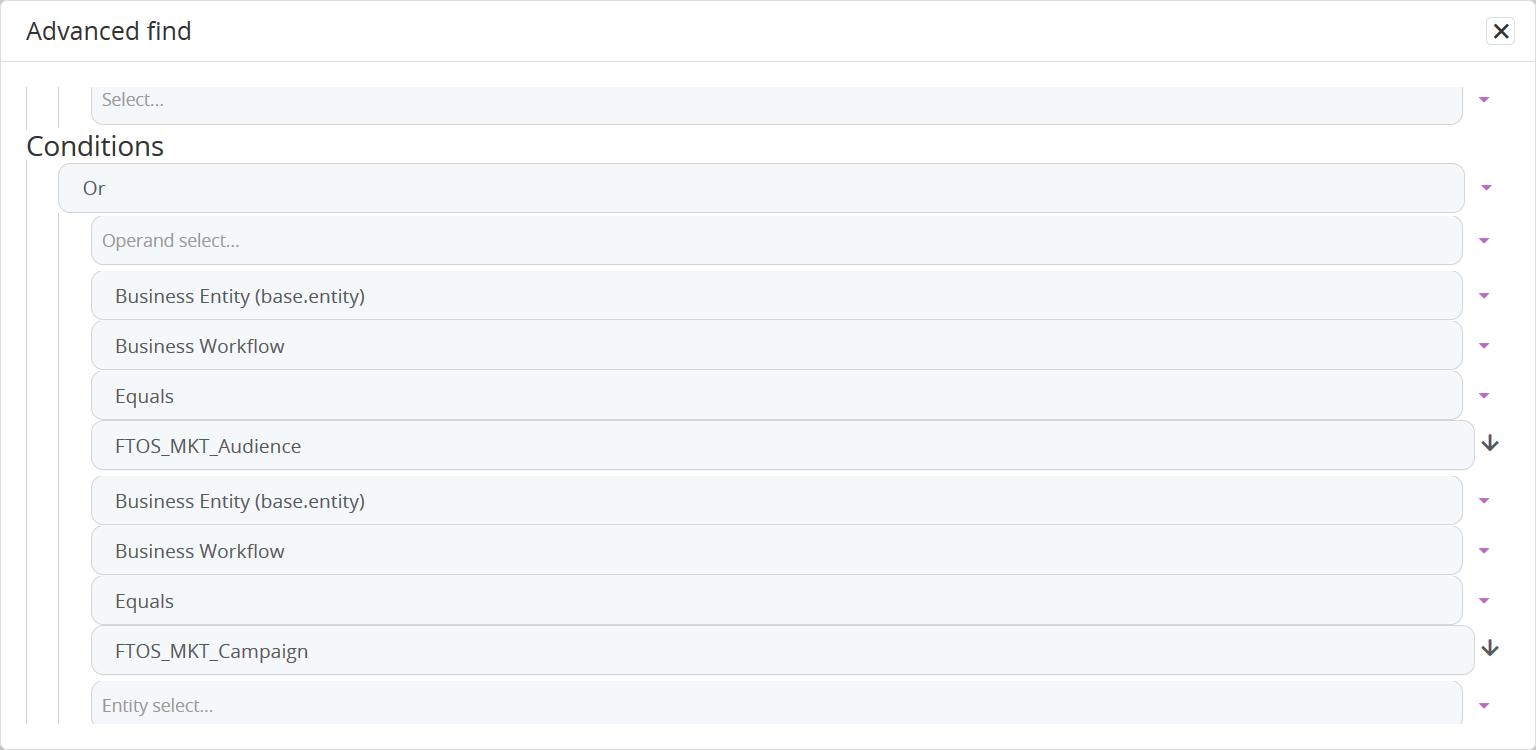

For example, the criteria below will filter entities that have either the FTOM_MKT_Audience or the FTOS_MKT_Campaign business workflows attached.

Before saving the fetch, we recommend you to preview the fetch and validate the fetch results.

3 Order results

From the Order By section, the returned results can be arranged in ascending or descending order.

To order the records:

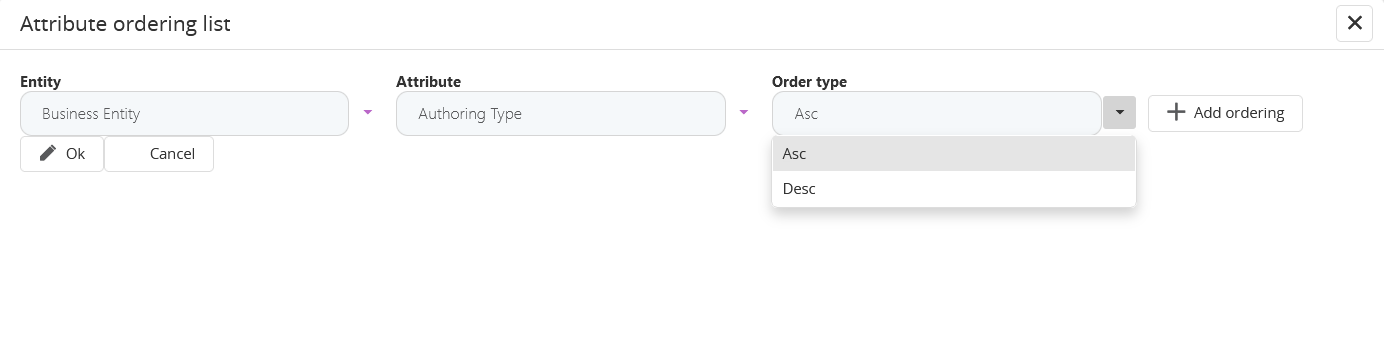

1. Click +Attribute ordering list.
2. Click the Entity field and choose one.
3. Click the Attribute field and choose one.
4. Click the Order type field and choose Asc or Desc (ascending/descending), then click +Add ordering to save the selection.
5. Click Ok to return to the Advanced find page.

4 Validate the Fetch Results

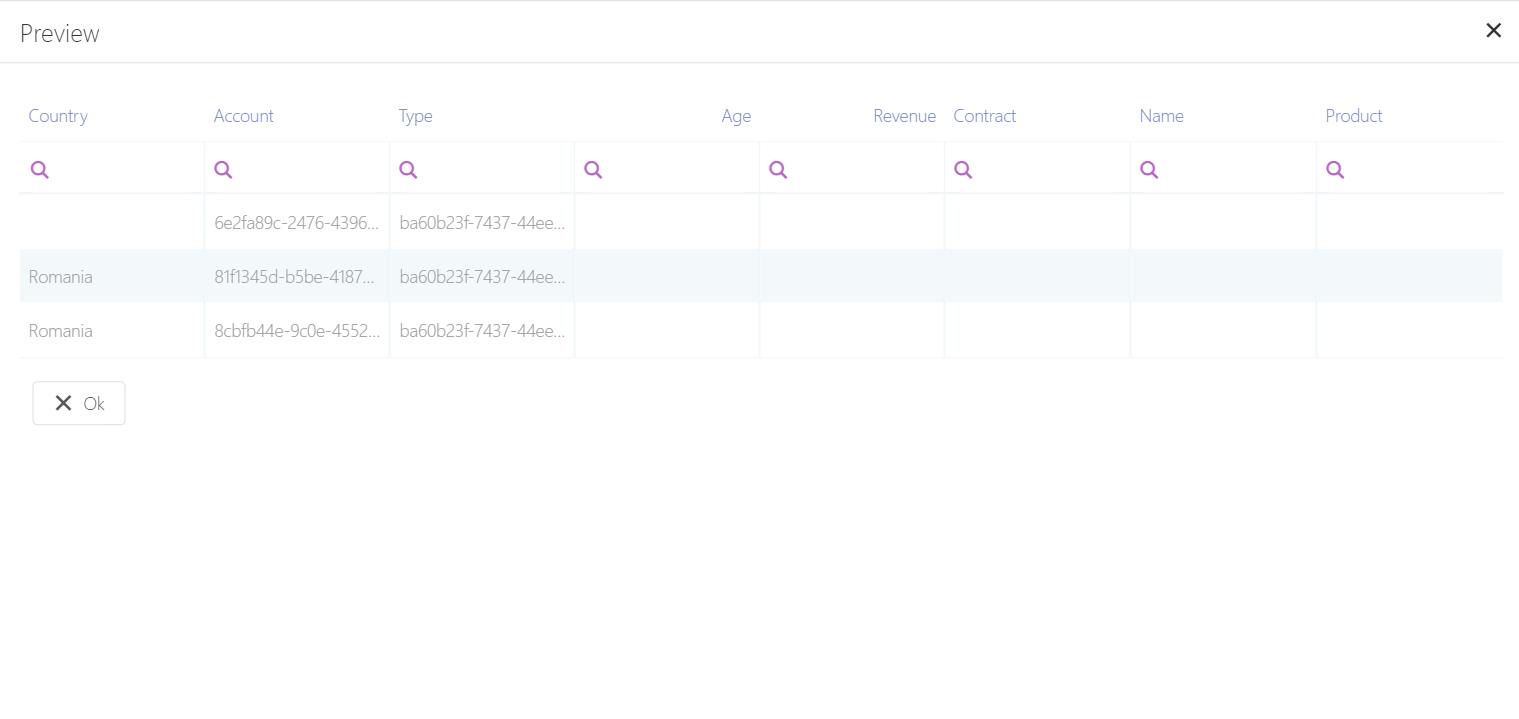

To validate the fetch results, preview them by clicking Preview. The figure below is a preview example of data fetched from the Account, Contract and Product entities.

Validate the results, then click Ok to close the page.

To filter the fetch, in the Advanced find page, click Ok.
